Non Weld Rigid Positive 36" Bow Spring Centralizer

Brand Name : Puyang Zhongshi Group

Model Number : 4 1/2"~20"

Certification : API,ISO,QHSE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, MoneyGram

Delivery Time : depends on quantity

Packaging Details : Wooden Box

Type : Non-welded

Size : 4 1/2"~36"

Installation : Latch-on

Bow : 4~12

Vane : Single and positive

Application : Oilfield Cementing Equipment

Contact Now

Non-weld Rigid Positive Casing Centralizer

Positive bow centralizer is used for both casing and tubing applications that require concentric casing strings.

In deviated cased holes, the centralizer significantly reduces frictional drag and can provide nearly 100% standoff.

Non-weld Rigid Positive Casing Centralizer Features
  • It requires concentric casing strings and used in deviated well and horizontal well.
  • The design can reduce the frictional drag when used in casing running.
  • According to fluid density and quantity in the well , the height and depth of the U profile can be designed as required.
  • The featured U-profile design is easy to keep the fluid flow at nearly 100% stand off,generally speaking,it is at 67% stand off,so it is more effective than conventional bow spring centralizer.
Non-weld Rigid Positive Casing Centralizer Specification

Model

(in)

 Hooping In-Dia. (mm) Hooping Thickness (mm) Hooping Height (mm) Total Length (mm) Max. Out-Dia. (mm) Spring Pieces
5-1/2*8-1/2 142-148 5 - 7 50-60 650±50 225±5 5
6*8-1/2 154-158 5 - 7 50-60 650±50 255±5 5
13-3/8*17-1/2 342-349 8 50-60 580 450±5 6
20*26 510-518 8 50-60 650±50 670±5 10

Non Weld Rigid Positive 36" Bow Spring Centralizer


Product Tags:

36" Bow Spring Centralizer



Positive Bow Spring Centralizer



36" positive centralizer


Wholesale Non Weld Rigid Positive 36" Bow Spring Centralizer from china suppliers

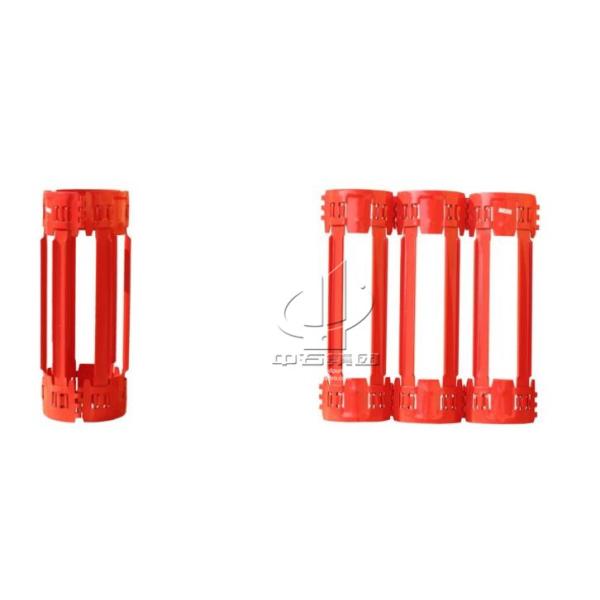

Non Weld Rigid Positive 36" Bow Spring Centralizer Images
